UltimaWaterfall is a color-scaled spectrum waterfall display ActiveX control designed for spectrum data visualization. It provides engineers and scientists with a powerful, easy-to-use data visualization component that can be integrate seamlessly into their applications.
Paid registration of UltimaWaterfall will be highly appreciated, which helps us to maintain the website and design more tools.
Until UltimaWaterfall is registered, an ad-line will be displayed in the chart. As a bonus, paid registration users have access to CopyToClipboard method.
Key Features:
-

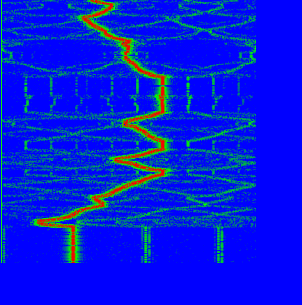

Six directional movements: Bottom to Top, Top to Bottom, Right to Left, Inversed Right to Left and +/-45 Degree (see above image)
-
Allows customizing the color scale and depth
-
Multiple scaling methods
-
One call to copy the image to clipboard
-
Crosshair coordination feedback
-
Up to 4096 points data
-
Single point setting so that it can be used with even the most primitive languages
Installation:
-
To install XChart, Ultimawaterfall and FFT1024, you may either download and install Charting controls for everyone or the Windaq Add-ons
Charting controls for everyone contains executable demos and VB samples for the charting utilities. The waveforms are generated by the sample instead of a specific hardware, thus making it a perfect starting point for incorporating these charting utilities with user data or waveforms acquired via other data acquisition suppliers.
Two VB6 sample programs are included if you install Charting controls for everyone. If you use VisualBasic 2008 Express Edition, please get the source codes from here, For other languages, please check this out
-
demo_xchart: demonstrate how to create an user data array to send data to XChart.
-
demo_waterfall_1024: demonstrate how to create a waveform for FFT1024 and Ultimawaterfall
-
-
Here are the two example in VBX2008 projects for reference (VB6 examples comes with the installations)
-
Sound Analyzer project also contains source codes to demonstrate UltimaWaterfall. UltimaSound uses the microphone on PC to display the spectrogram of audio signal
-
Further more, Windaq Add-ons package's spectrogram add-on demonstrates the use of UltimaWaterfall
