Purpose of the sample programs:

a) Acquire voltage signal between -10 to 10V via Channel 1 of DATAQ's data logger DI-194 at a rate of 240 Samples/second

b) The data is streamed back to the PC via COM 1

c) The input signal is displayed on a scrolling waveform window

Steps

1) Please download and install UltimaSerial

2) Install DI-194 on COM 1:

3) Click here to download the VEE Pro 7.5 sample, which is provided by Mr. Tim Wrigley.

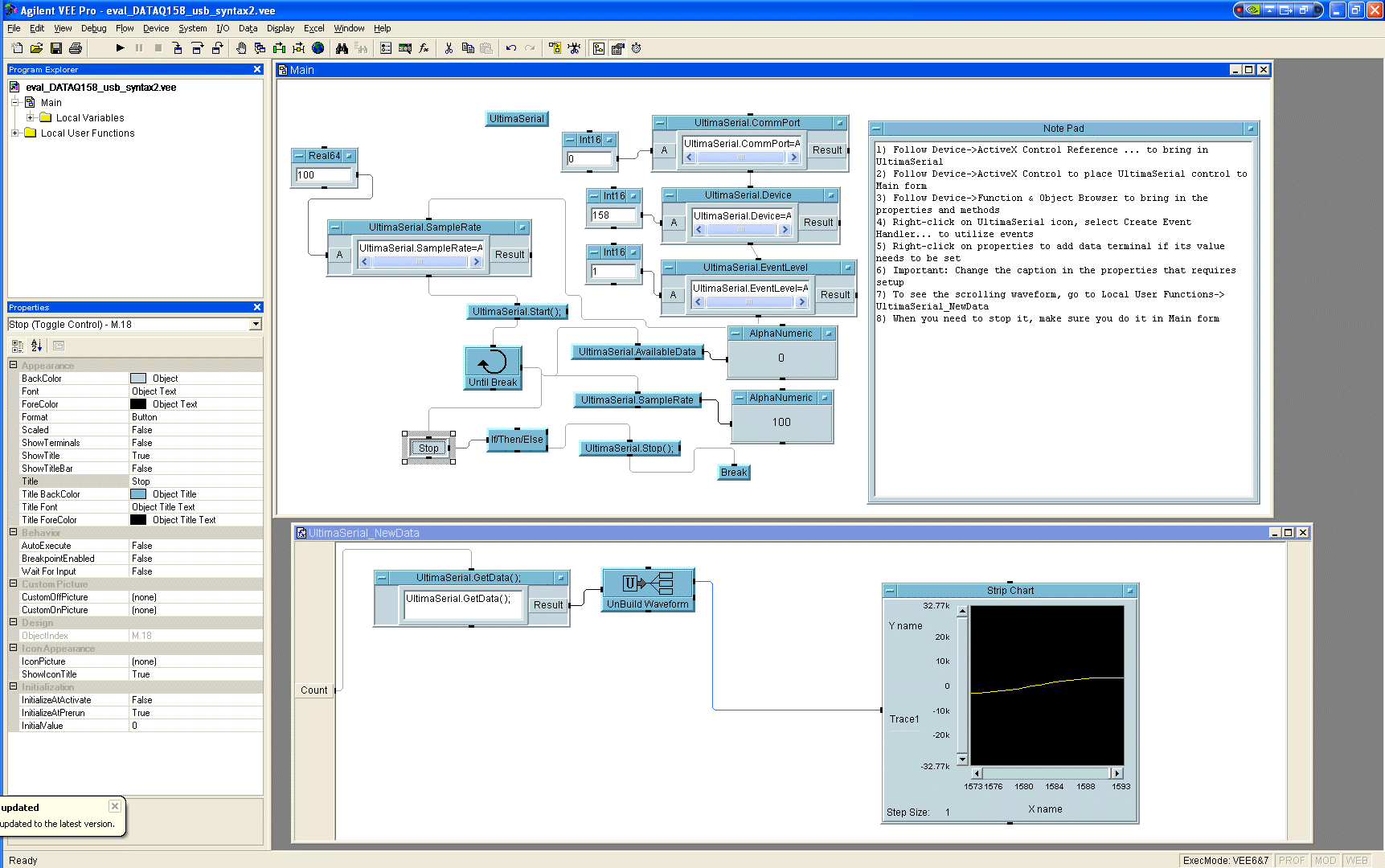

Below is its screen capture. Scroll down to see VEE 6.0 sample. Pay attention to the difference between the two versions. VEE 7.5 uses formats like ULtimaserial.commport=A, while VEE 6.0 uses formats like Ultimaserial.commport(A)

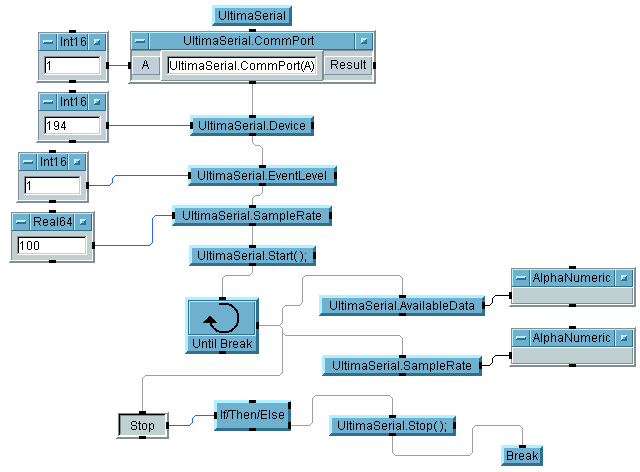

3) Click here to download the VEE Pro 6.0 sample. Pay attention to the difference between the two versions. VEE 7.5 uses formats like ULtimaserial.commport=A, while VEE 6.0 uses formats like Ultimaserial.commport(A)
